Container Compute Service:Use RRSA to authorize different pods to access different cloud services

Use a new RAM role and grant the required permissions to the RAM role

In this example, an application is created and RRSA is enabled for the cluster to allow the application to perform the following operations: assuming a specified RAM role and then calling an API operation to query clusters that belong to the current Alibaba Cloud account. The following resources are used.

• Namespace: rrsa-demo

• Service account: demo-sa

• RAM role: demo-role-for-rrsa

1. Create a RAM role named demo-role-for-rrsa.

   1. Use an Alibaba Cloud account to log on to the RAM console.

   2. In the left-side navigation pane, choose Identities > Roles. On the Roles page, click Create Role.

   3. In the Create Role panel, click Switch To Editor to create a role.

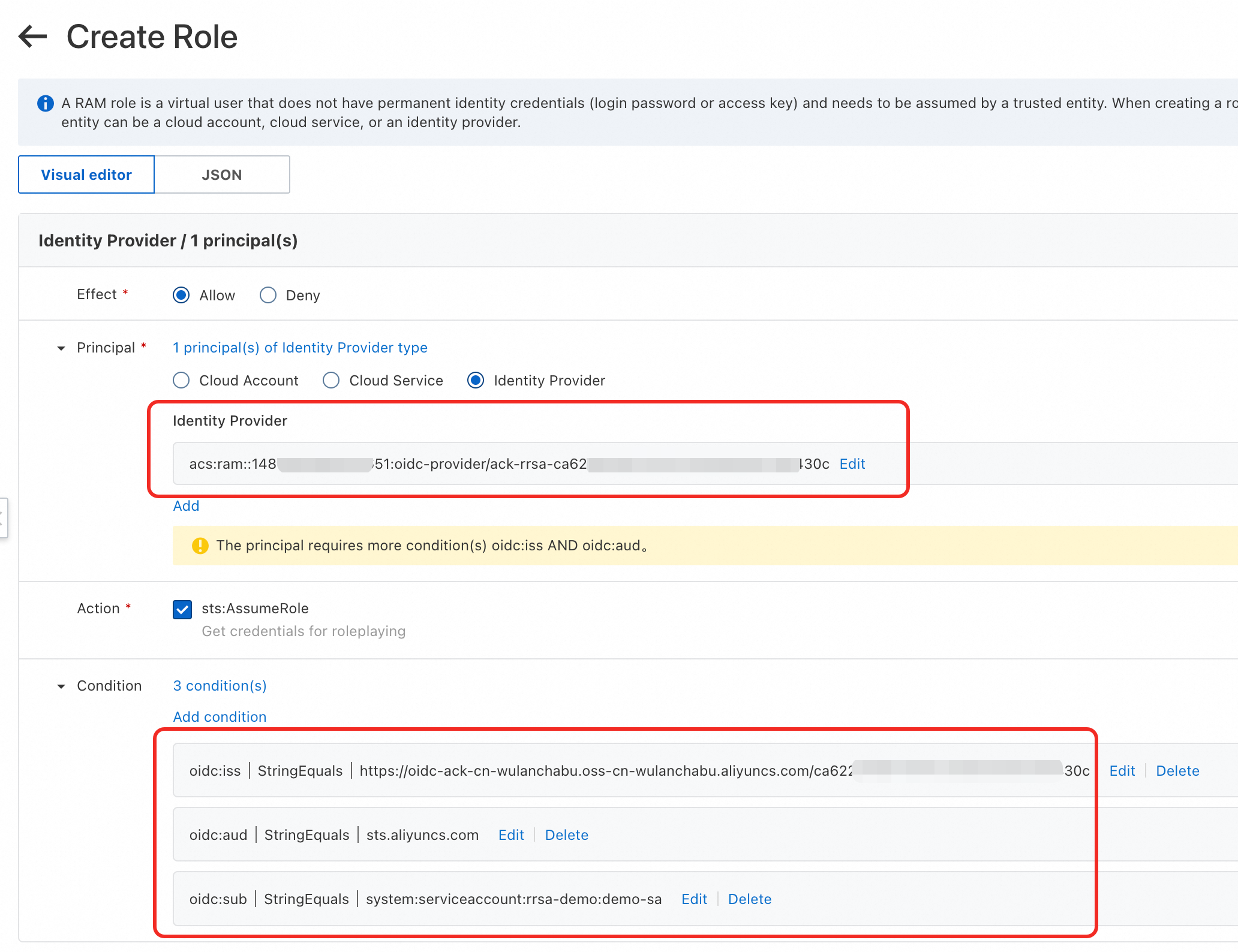

   4. For example, if you use Visual Editor, configure the role based on the following information and click OK.

      Configuration item	Description
      Effect	The default value is Allow.
      Principal	Select Identity Provider and click Edit. Set the identity provider type to OIDC and select the identity provider of the cluster, such as ack-rrsa-<cluster_id>. <cluster_id> is the ID of your cluster.
      Action	sts:AssumeRole is selected by default.
      Condition	oidc:iss: This condition is automatically added after you select Identity Provider. Keep the default value. oidc:aud: This condition is automatically added after you select Identity Provider. Keep the default value. oidc:sub: You need to manually Add A Condition. Condition Key: oidc:sub Operator: StringEquals Condition Value: The format is system:serviceaccount:<namespace>:<serviceAccountName>. <namespace>: Specify the namespace of the application. <serviceAccountName>: Specify the name of the service account. In this example, enter system:serviceaccount:rrsa-demo:demo-sa.



   5. In the dialog box that appears, enter the role name demo-role-for-rrsa and click OK.

2. Attach the AliyunCSReadOnlyAccess system policy to the created role. For more information, see Grant permissions to a RAM role.



3. Deploy the application.

   1. Create a file named demo.yaml based on the following requirements:

      Note

      Modify the following fields in the preceding template:

      • Replace <role_arn> with the ARN of the RAM role that is used by the application. You can view the ARN on the Basic Information tab of the RAM console.

      • Replace <oid_provider_arn> with the ARN of the OIDC provider used by the cluster. You can move the pointer over Enabled to the right of RRSA OIDC on the Basic Information tab of the Cluster Information page.

      View sample YAML template

      ---
      apiVersion: v1
      kind: Namespace
      metadata:
        name: rrsa-demo
      ---
      apiVersion: v1
      kind: ServiceAccount
      metadata:
        name: demo-sa
        namespace: rrsa-demo
      ---
      apiVersion: v1
      kind: Pod
      metadata:
        name: demo
        namespace: rrsa-demo
      spec:
        containers:
        - args:
          - rrsa
          - demo
          env:
          - name: ALIBABA_CLOUD_ROLE_ARN
            value: <role_arn>
          - name: ALIBABA_CLOUD_OIDC_PROVIDER_ARN
            value: <oid_provider_arn>
          - name: ALIBABA_CLOUD_OIDC_TOKEN_FILE
            value: /var/run/secrets/ack.alibabacloud.com/rrsa-tokens/token
          image: registry.cn-hangzhou.aliyuncs.com/acs/ack-ram-tool:1.0.0
          imagePullPolicy: Always
          name: demo
          volumeMounts:
          - mountPath: /var/run/secrets/ack.alibabacloud.com/rrsa-tokens
            name: rrsa-oidc-token
            readOnly: true
        restartPolicy: OnFailure
        serviceAccount: demo-sa
        serviceAccountName: demo-sa
        volumes:
        - name: rrsa-oidc-token
          projected:
            defaultMode: 420
            sources:
            - serviceAccountToken:
                audience: sts.aliyuncs.com
                expirationSeconds: 3600  # Unit: seconds. Valid values: 600 (10 minutes) to 43200 (12 hours).
                path: token

   2. Run the following command to deploy the application:

      kubectl apply -f demo.yaml

      After the application is deployed, the program of the application can use the OIDC token, ARN of the RAM role, and ARN of the OIDC identity provider to call the STS AssumeRoleWithOIDC API operation to obtain the temporary STS token of the RAM role. Then, it can use the token to call the APIs of cloud services. For more information, see AssumeRoleWithOIDC.

4. Run the following command to print the log of the application:

   kubectl -n rrsa-demo logs demo

   A list of clusters are displayed in the output:

   20**/**/** 08:35:23 ======= [begin] list ACK clusters with RRSA =======
   clusters:
   cluster id: cf***, cluster name: foo*
   cluster id: c8***, cluster name: bar*
   cluster id: c4***, cluster name: foob*
   20**/**/** 08:35:24 ======= [end]   list ACK clusters with RRSA =======

5. Optional: Detach the AliyunCSReadOnlyAccess system policy from the RAM role. For more information, see Remove permissions from a RAM role.

   Wait 30 seconds and run the following command to print the log of the application again:

   kubectl -n rrsa-demo logs demo

   The following error message indicates that the application does not have the required permissions:

   20**/**/** 10:09:33 ======= [begin] list ACK clusters with RRSA =======
   20**/**/** 10:09:33 SDKError:
      StatusCode: 403
      Code: StatusForbidden
      Message: code: 403, STSToken policy Forbidden for action cs:DescribeClusters request id: XXXX
      Data: {"accessDeniedDetail":{"AuthAction":"cs:DescribeClusters","AuthPrincipalDisplayName":"demo-role-for-rrsa:ack-ram-tool","AuthPrincipalOwnerId":"XXXX","AuthPrincipalType":"AssumedRoleUser","EncodedDiagnosticMessage":"XXXX","NoPermissionType":"ImplicitDeny","PolicyType":"ResourceGroupLevelIdentityBasedPolicy"},"code":"StatusForbidden","message":"STSToken policy Forbidden for action cs:DescribeClusters","requestId":"XXXX","status":403,"statusCode":403}

Use an existing RAM role and grant the required permissions to the RAM role

If you want the application to use an existing RAM role, you must modify the trust policy of the RAM role based on the following template. This way, the application can use the service account to assume the RAM role and obtain an STS token. For more information, see Edit the trust policy of a RAM role.

Example of the Statement configurations:

{
  "Action": "sts:AssumeRole",
  "Condition": {
    "StringEquals": {
      "oidc:aud": "sts.aliyuncs.com",
      "oidc:iss": "<oidc_issuer_url>",
      "oidc:sub": "system:serviceaccount:<namespace>:<service_account>"
    }
  },
  "Effect": "Allow",
  "Principal": {
    "Federated": [
      "<oidc_provider_arn>"
    ]
  }
}
